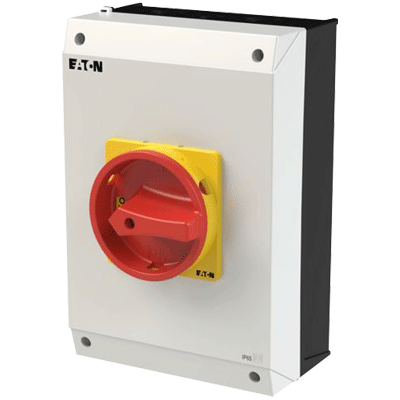

P3 safety switch 690V 63A 3-pol+NO-NC 4*M25/32+2*M20 red hand.IP65 IEC

P3-63/I4/SVB/HI11

Safety switch used to prevent unintended or unauthorized start of electrical equipment. The handle can be padlocked with your own padlock in off position. Meets EN60204-1 as emergency stop. Impact resistant glass fibre reinforced polycarbonate enclosure.

Pack size: 1/package
In stock (0 pcs)
Estimated delivery time, if not in stock: 21 days

Rated voltage, Un
690VAC
Rated current, Iu
63A
No. of poles, auxiliary contacts
3+NO-NC auxiliary switch
Rated operating current AC-21A, Ie
63A at 440VAC
Rated conditional short-circuit current, Iq
100kA with class gG back-up fuse, max 80A
AC-3 motor load
230VAC: 15kW, 400-690VAC: 30kW
AC-23 motor and inductive load
230VAC: 18,5kW, 400VAC: 30kW, 500VAC: 37kW, 690VAC: 30kW
Auxiliary contact
NO-NC, Ui: 500VAC, Iu: 10A, max back-up fuse: gG 10A
Operating handle
Red-yellow operator, padlocable in off position
Enclosure
Glass fibre re-inforced polycarbonate, light-grey
Cable entry
4xM25/32+2xM20
Ingress protection, IEC60529
IP65
Terminals
2,5-35mm², 1,5-25mm² with ferrule
Ambient temperature
-25 - +40°C
Weight, each
1,035kg
Manufacturer's part number
P3-63/I4/SVB/HI11

Safety switches

Safety switch used to prevent unintended or unauthorized start of electrical equipment.

Safety switches according to IEC, versions also with UL/CSA approval. The handle can be padlocked with your own padlock in off position. Meets EN60204-1 as emergency stop. Impact resistant glass fibre reinforced polycarbonate enclosure.

  • 690VAC, 600VAC according to UL/CSA
  • 20 to 275A
  • 1 to 8 pole versions
  • Red-yellow or black handle, can be padlocked in off position
  • Can be supplied with auxiliary contacts
